REPLACING RADIAL OIL SEAL FOR OUTPUT FLANGE
Remove exhaust assembly 18 00 020.
Remove shift lever 25 11 000.
Version with Heat Shield:
Detach heat shield at body.
Disconnect guard (1) at propeller shaft.


Siehe auch 18 00 020
Siehe auch 25 11 000
63323010 - click to zoom

Apply Special Tool 26 1 011.
Unscrew bolts.
Installation: Use stop nuts only once.

73023027 - click to zoom

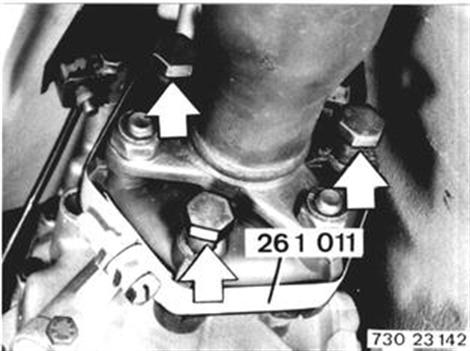

Tighten Special Tool 26 1 011 until bolts can
be removed by hand.

73023142 - click to zoom

Installation: Tighten nuts to specified torque¹)
with torque wrench.
Important: Only tighten nuts (never bolts) to
avoid stress in Giubo coupling.
Remove special tool only after tightening nuts.


Siehe auch ¹) See Specifications
63023085 - click to zoom

Disconnect center bearing.
Installation: Preload center bearing forward by
distance (A) = about 2 mm (0.080´´).

63023013 - click to zoom

Bend propeller shaft down and pull out of centering
pin on transmission.
Installation: Check center, lubricating with
Longterm 2 if necessary.
Replace a damaged center.

63023016 - click to zoom

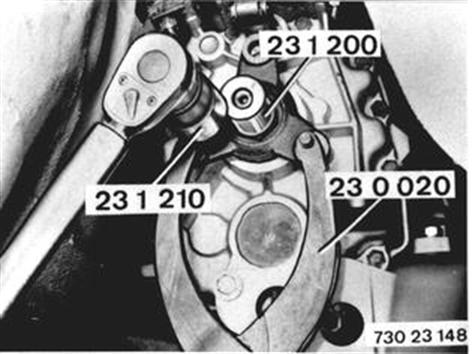

Remove lockplate.
Mount Special Tool 23 1 200.
Hold output flange with Special Tool 23 0 020.
Unscrew collar nut¹) with Special Tool 23 1 210.


Siehe auch ¹) See Specifications for tightening torque
73023148 - click to zoom

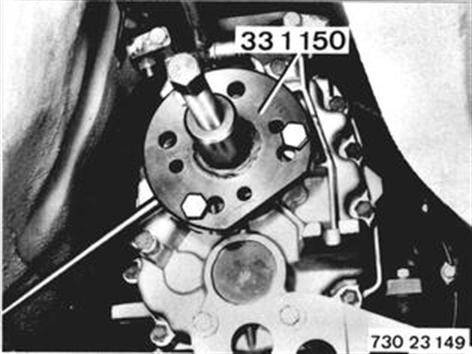

If necessary, pull off output flange with Special
Tool 33 1 150.

73023149 - click to zoom

Pull out radial oil seal with Special Tool
00 5 000.

63023033 - click to zoom

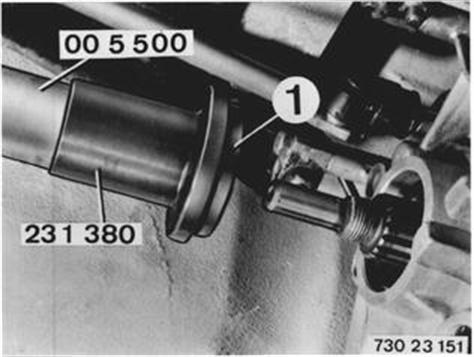

Knock in radial oil seal (1) with Special
Tools 23 1 380 and 00 5 500.
Installation: Lubricate sealing lip with oil.

73023151 - click to zoom

Attach output flange.
Install collar nut¹) with Loctite No. 270.
Lock lockplate in groove of output flange.


Siehe auch ¹) See Specifications for tightening torque
73023022 - click to zoom

Vehicles after change point in 1982
REPLACING RADIAL OIL SEAL FOR
OUTPUT FLANGE
Unscrew propeller shaft - see 23 00 022.

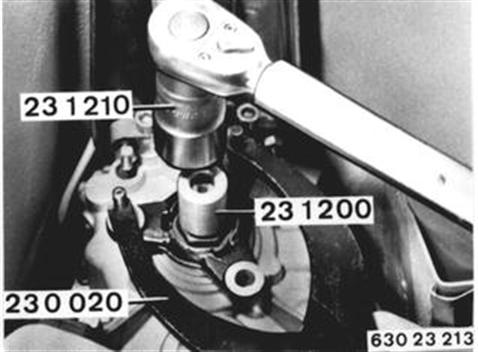

Lift out lockplate.
Apply Special Tool 23 1 200.
Hold output flange with Special Tool 23 0 020.
Unscrew collar nut with Special Tool 23 1 210.


Siehe auch 23 00 022
63023213 - click to zoom

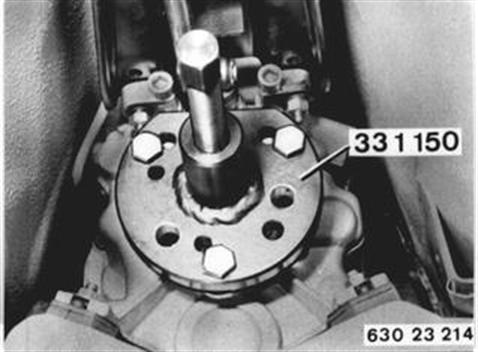

If too difficult, pull off output flange with
Special Tool 33 1 150.

63023214 - click to zoom

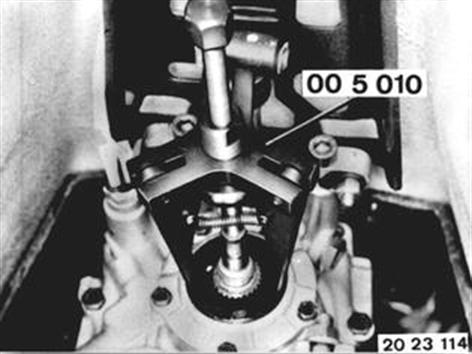

Pull out radial oil seal with Special Tool
00 5 010.

2023114 - click to zoom

Lift out radial oil seal.

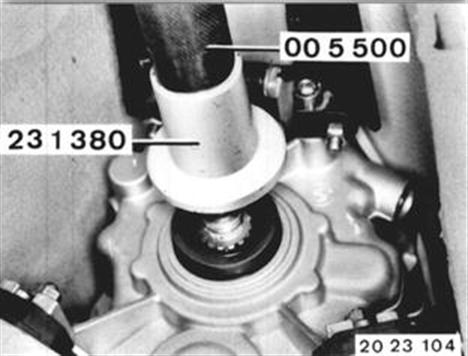

Drive in radial oil seal with Special Tools
23 1 380 and 00 5 500.
Installation:
Lubricate sealing lips with oil.
Bolt output flange.
Tightenning torque*.
Install collar nut with Loctite No. 270.
Lock lockplate in groove of output flange.


Siehe auch * See Specifications
2023104 - click to zoom

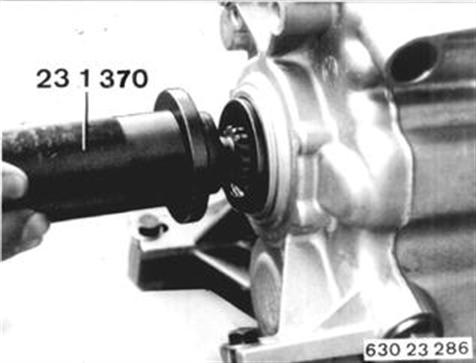

Transmission 260/6:
Drive in radial oil seal flush with Special Tool
23 1 370.

63023286 - click to zoom
