REMOVING AND INSTALLING HAZARD LIGHT/TURN
SIGNAL RELAY
Disconnect minus lead at battery.
Detach and attach instrument panel trim at
bottom left - 51 45 180.
Detach flasher.


Siehe auch 51 45 180

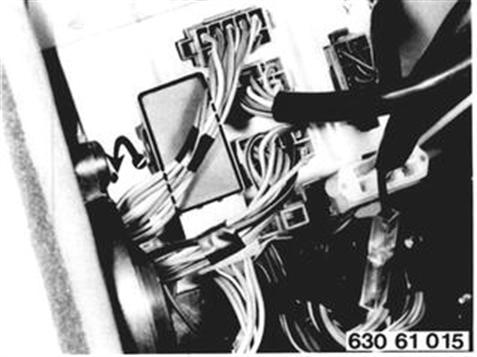

63061015 - click to zoom

Disconnect central fuse/relay plate plugs.

63061030 - click to zoom

Vehicles after change point in 1982
Disconnect battery ground lead.
Unscrew steering column casing.

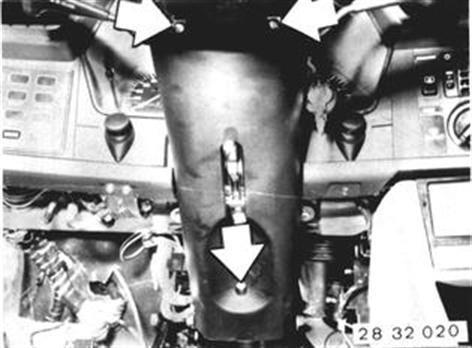

2832020 - click to zoom

Pull off plug.
Pull flasher (relay) out of holder.

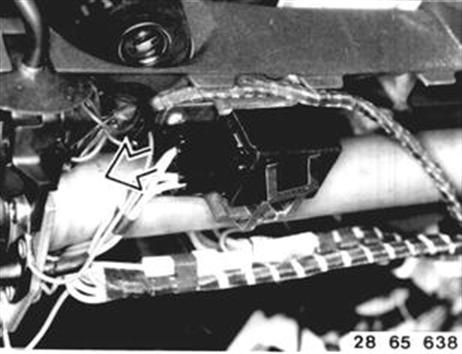

2865638 - click to zoom
