RREMOVING AND INSTALLING SERVICE INTERVAL SWITCH
Disconnect minus lead at battery.

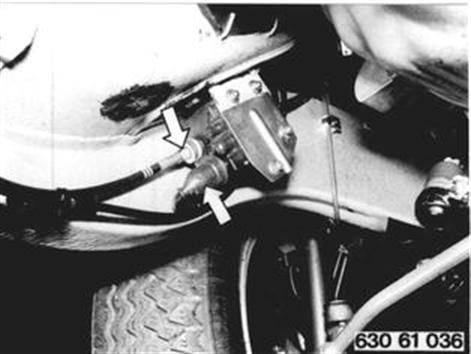

Detach speedometer cable lower section and
central fuse/relay plate plugs.

63061036 - click to zoom

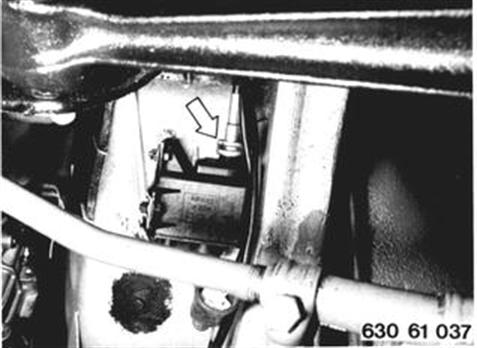

Unscrew speedometer cable.

63061037 - click to zoom

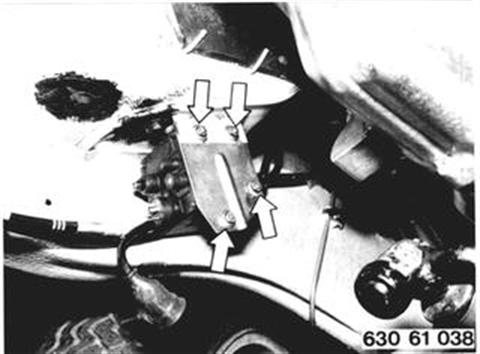

Unscrew screws and remove interval switch.
Installation: Note specified path speed¹).


Siehe auch ¹) See Specifications
63061038 - click to zoom

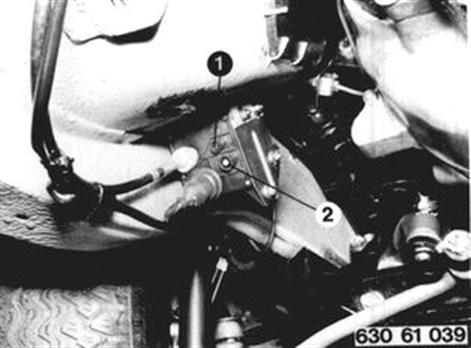

Note: After 12,500 miles in the top row of
the inquiry unit "EGR" will go out and after
25,000 miles "REACTOR".
After completion of the specified inspection,
push in pin (1) = "REAC" or pin (2) =
"EGR" with a screwdriver until the counter
is heard as it returns to off position.
Lamps in inquiry unit must be on now.

63061039 - click to zoom
