Vehicles after change point in 1982
Remove windshield wiper motor 61 61 250.

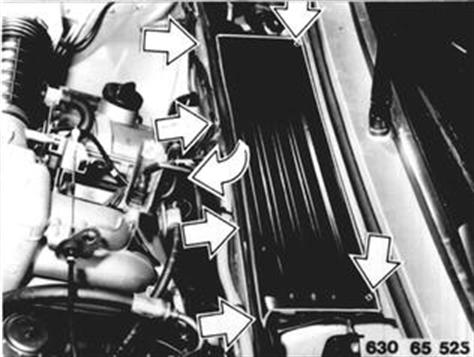

Unscrew screws and lift out water drain plate.


Siehe auch 61 61 250
63065525 - click to zoom

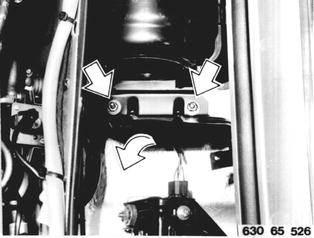

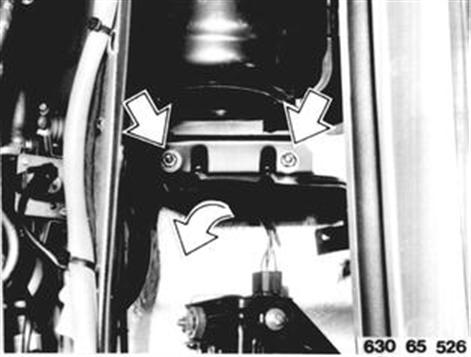

Unscrew screws and lift out holder.

63065526 - click to zoom

Left and Right:
Lift off cover.

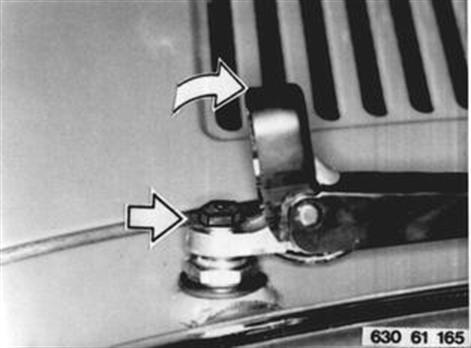

Unscrew nut.
Pull off wiper arm.

63061165 - click to zoom

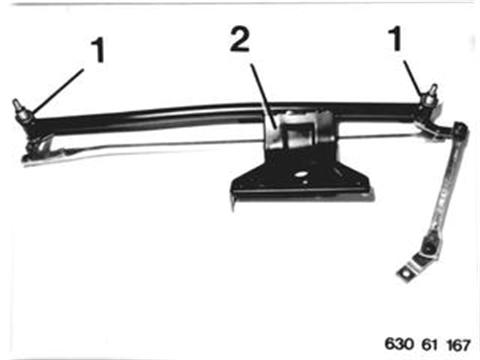

Unscrew nuts on left and right sides.
Pull out windshield wiper console complete with both mounts.

63061166 - click to zoom

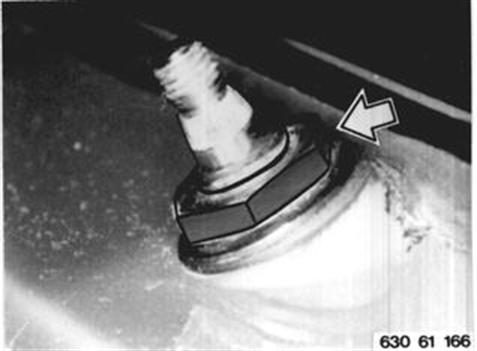

Unscrew nuts (1) and pull off console (2).
Disconnect ball joints.

63061167 - click to zoom

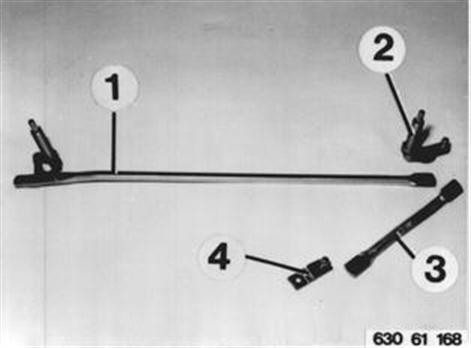

1 = Mount, right
2 = Mount, left
3 = Connecting rod
4 = Motor crank
Note:
If only the left mount has to be replaced, this can take place in installed state.
Procedures described with Figures 1 and 2 (630 65 525 and 630 65 526) can be
omitted.

63061168 - click to zoom
